Bridges of Metro-North: The Norwalk River Bridge, Part 1

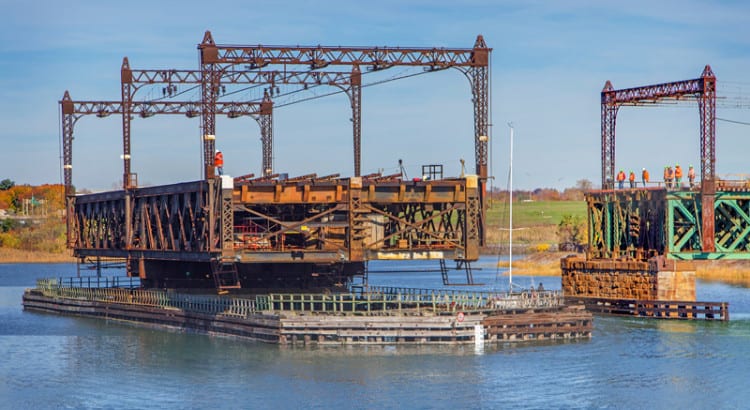

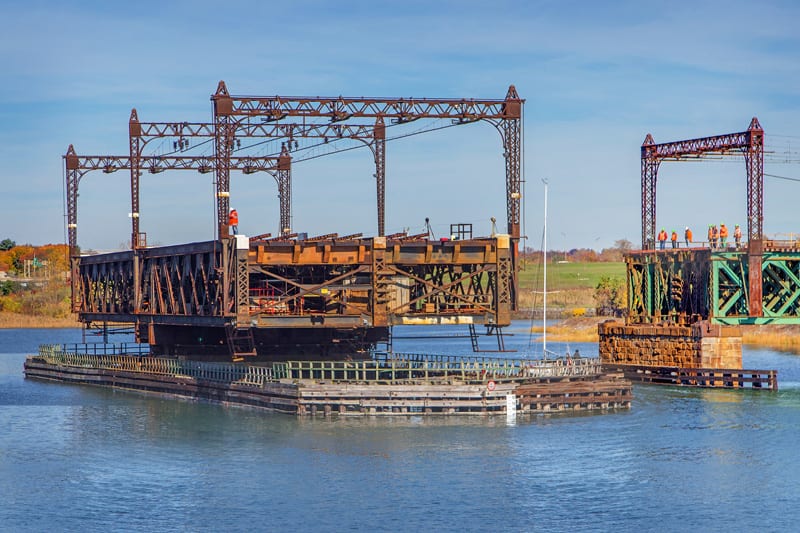

Continuing into the new year with our visits to some of Metro-North’s movable bridges, today’s feature is the Norwalk River Bridge. This bridge, owned by the state of Connecticut, is commonly known as WALK, and is the bane of the New Haven Line. Built in 1896, the bridge is one of many pieces of practically ancient infrastructure you’ll find along the line. Prone to getting stuck open and preventing trains from crossing – which happened several times last year – the historical bridge is badly in need of a replacement or serious upgrade. For the interim, attempts have been made to open the bridge less frequently, and to have crews standing by when the bridge does open to hopefully prevent any issues. While I had been under the impression that the bridge would be staying shut while repairs were under way starting in June, I was lucky enough to capture an opening of the bridge on November 8th, much to my surprise.

Constructed for the New York, New Haven, and Hartford Railroad, the Norwalk River Bridge is a 562-foot long rim bearing swing bridge. Sitting about 16 feet above the water, the bridge’s 202 foot long center deck rotates along a center point to allow marine traffic to pass. When opening, rail locks are released, the rail ends are lifted, catenary wire is separated, wedge locks are withdrawn, and bridge locks are released. Only then can the machinery located at the center pier under the tracks can do its work to swing the bridge open. All of these delicate maneuvers need to happen in concert, which is difficult considering the age of the machinery involved. Also complicating matters for repairs is the fact that the old movable bridges on the Northeast Corridor are all unique – there was no standard for construction, and each bridge has unique mechanical components.
